Document hierarchy
CoreData’s document model is built of documents organised in a tree.
Base abstract document type is Document. All specific document types such as Space, Folder, Project, File etc. derive from Document and are system types.

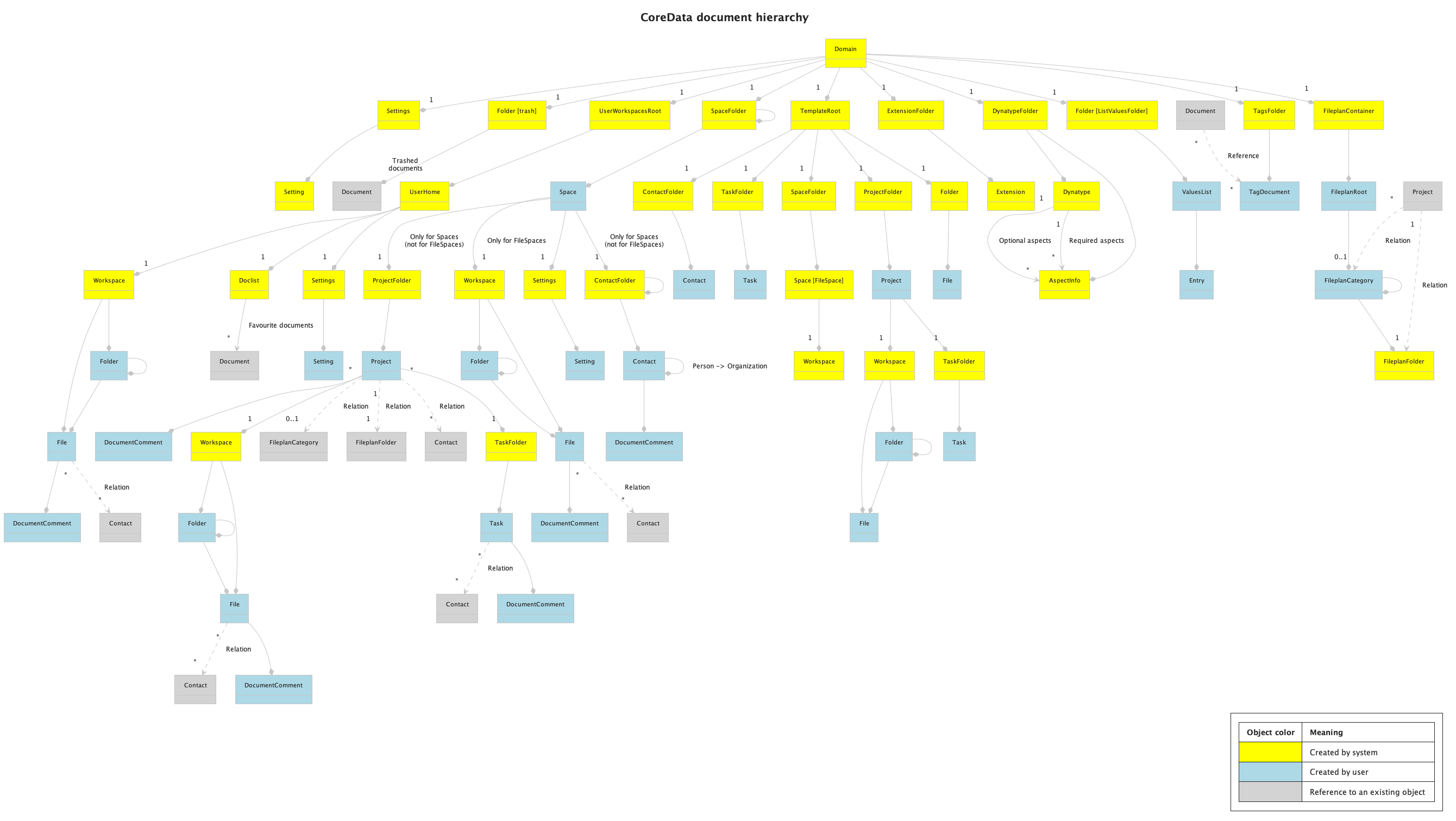

The conceptual schema below displays allowed children for each document type in the hierarchy:
Source: link.
NOTE: A user record does not belong the Document type hierarchy, it is a separate type deriving from the Django’s django.contrib.auth.User.
The document hierarchy is easier to learn when broken down into sections. Documents in a section are grouped together and serve for solving specific user task in CoreData. See CoreData document hierarchy per section below:
-
Domain document model -
UserHome document model -
Spaces document model -
Contacts document model -
Projects document model -
Tasks document model -
Comments document model -
Tags document model -
Dynatypes document model -
Templates document model -
Fileplans document model -
Extensions document model -
Trash document model -
ValuesList document model
Document creation
The following items are used in document creation process:
-
System type (the types mentioned in the Document hierarchy above);
-
Field values provided by user.

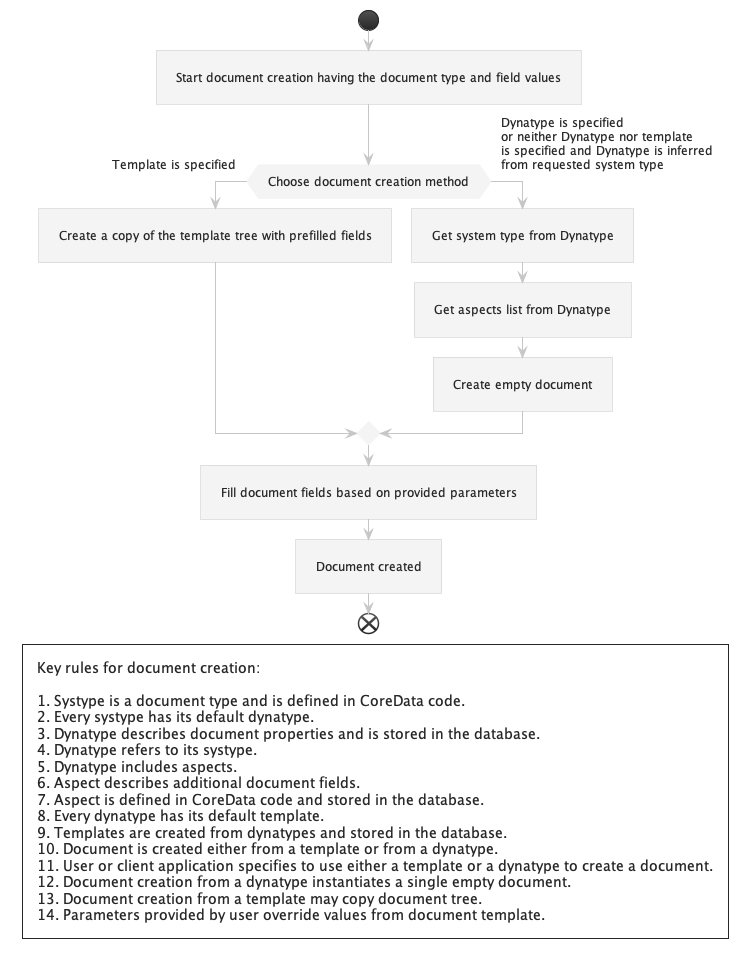

The high-level document creation algorithm is following:
Source: link.
